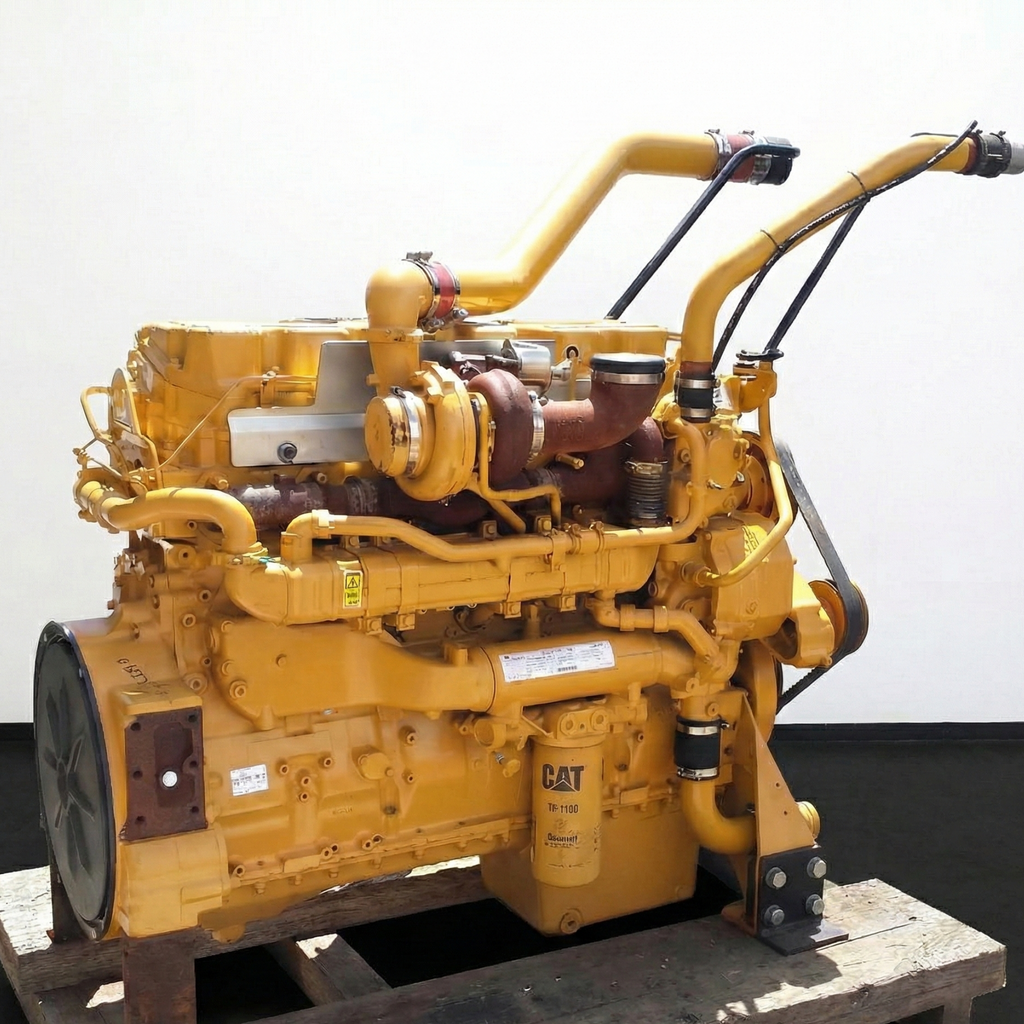

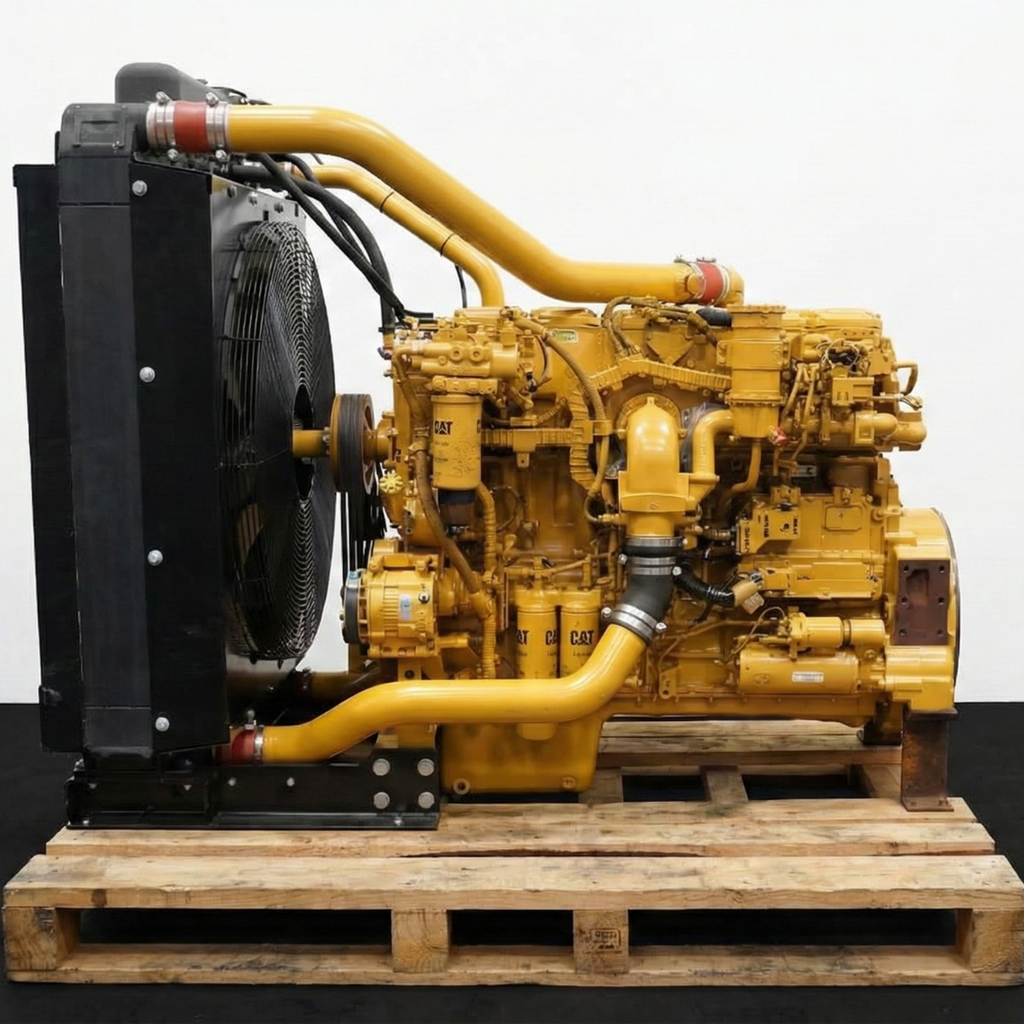

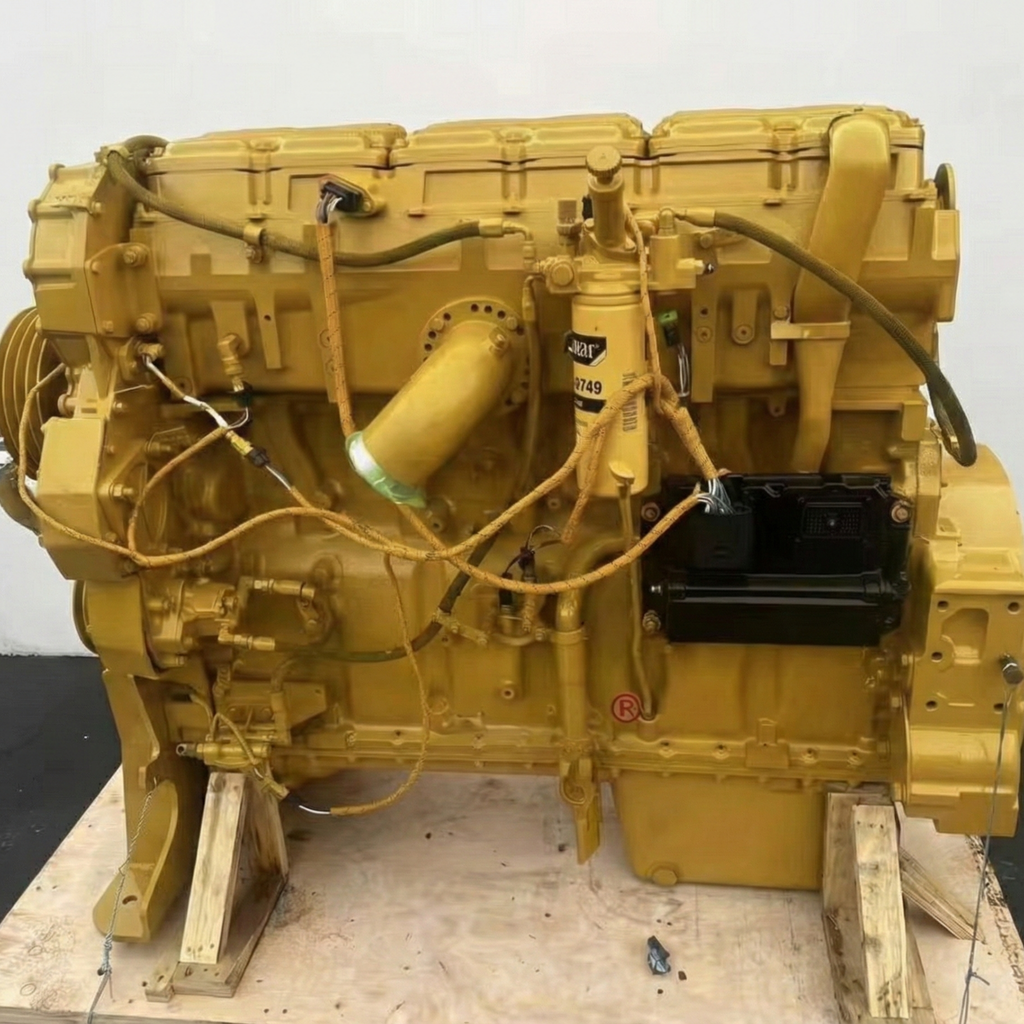

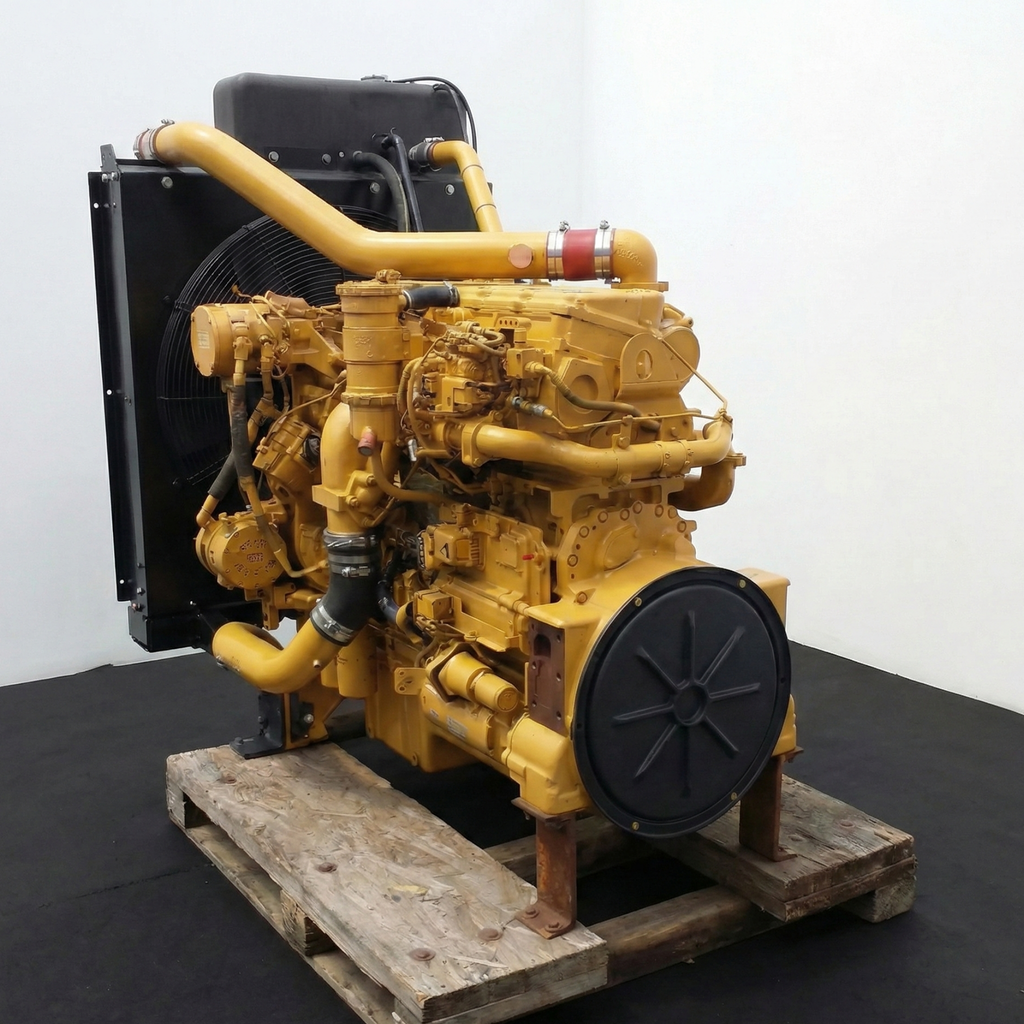

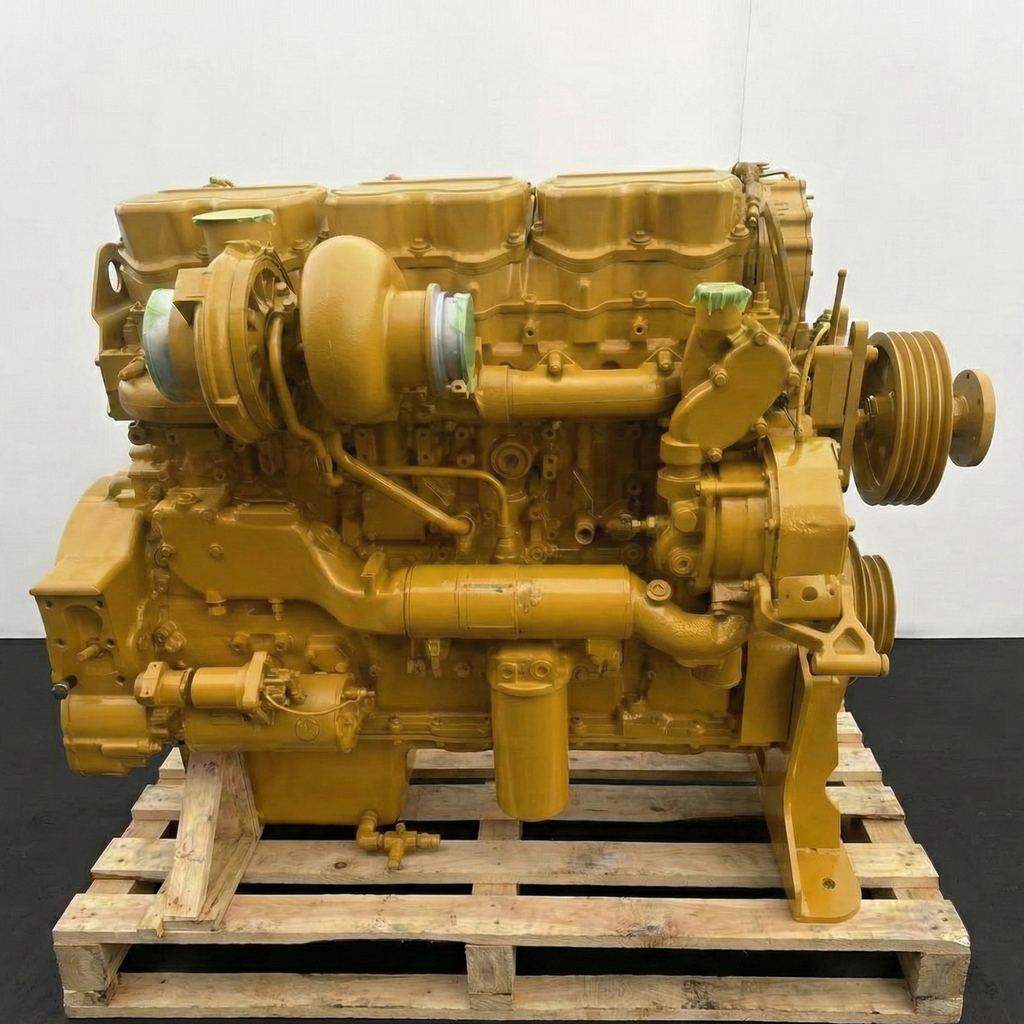

CAT C15 Engine Assembly - Remanufactured
Caterpillar
CAT C15 Engine Assembly
Remanufactured
- Supplied as
- Diesel Engine Assembly
- Arrangement / engine number
- Confirm against engine plate
- Displacement
- 15.2 L
- Configuration
- Inline 6, four-stroke diesel
Manufacturer reference data; the supplied build must be confirmed.
Manufacturer application references
- Cat lists agriculture, construction, cranes, forestry, material handling and mining uses for C15 industrial engines.
Confirm the full engine suffix, arrangement and machine serial number for an exact match.
With your order
- 6-month standard brand warranty Included
- Technical review & engine matchingIncluded at no extra cost. We compare the proposed engine with your current assembly using its data plate, arrangement and configuration to confirm the exact match before ordering. Included
- Genuine brand partsReman engines are configured with genuine brand parts, with no aftermarket parts. Included
- Dyno performance test Optional paid
- Complete teardown report On request
- Complete engine testing video On request
- Custom packaging and pallet labeling On request
- Protective coating and paint finish On request
- Custom testing requirements On request
More service options
Pre-dispatch inspection welcomeOptional paid
Radiator, compressor, injector and configuration add-onsBy quote
Any extra cost and preparation time are agreed before proceeding.
Explore engine servicesFreight is charged per engine and shown at checkout.
- No core deposit or return
- International shipping on all engines
Product details
Engine overview
This CAT C15 listing offers a remanufactured engine assembly.
The Cat C15 is a 15.2 L inline-six industrial diesel. Power, compression and emissions equipment vary across C15 configurations.
Configuration & included components
- Condition: Remanufactured.
- Assembly scope: Engine assembly.
- Confirm the included components and installation arrangement with NY Engines before ordering.
Warranty & delivery
- 6-month standard brand warranty
- There is no core deposit and no requirement to return your old engine.
- International DDP: Available for all engines, with estimated delivery in 2–3 weeks. Duties, tariffs, import taxes and customs fees are included.
- Freight is charged per engine and shown at checkout.
Technical specifications
The figures below are manufacturer reference data for the versions identified. Final output, dimensions, controls and emissions equipment depend on the engine build and application.
| Specification | Details |
|---|---|
| Configuration | Inline 6, four-stroke diesel |
| Bore | 137 mm |
| Stroke | 171 mm |
| Displacement | 15.2 L |
| Aspiration | Turbocharged and aftercooled |
| Combustion | Direct injection |
| Flywheel-end rotation | Counterclockwise |
| Compression ratio | 18.0:1 on cited lesser-regulated industrial version |
| Reference rating range | 328-444 bkW at 1,800-2,100 rpm on cited industrial version |
| Reference injection system | MEUI on cited lesser-regulated C15 |
| Reference flywheel housing | SAE No. 1 on cited lesser-regulated C15 |
Technical details
- The cited C15 industrial configuration uses electronic engine control and J1939 monitoring.
- Cat also documents Tier 4 Final C15 variants with aftertreatment and different power/compression specifications.
- The emissions package depends on the C15 production configuration and market.
Technical references
Applications & fitment
Documented application references
- Cat lists agriculture, construction, cranes, forestry, material handling and mining uses for C15 industrial engines.
Application examples identify documented uses of the engine family. Confirm fitment against the machine and engine serial numbers before ordering.
Confirm your engine match
- Request the included-component list and test record for this assembly.
- Provide the existing engine serial and arrangement plus the machine PIN. Compare mounts, flywheel housing, cooling and fuel systems, electronics, accessories and emissions configuration.
For fitment checks, availability or a quote, email info@nyengines.com with your engine data-plate photo, machine details and required assembly scope.
Buyer guide
- Start with the emissions label and arrangement: Cat's cited lesser-regulated C15 uses a different emissions configuration from its Tier 4 Final C15. The family name alone is insufficient for a replacement match.
- Cat's cited lesser-regulated C15 uses MEUI injection, ADEM A4 control and an SAE No. 1 flywheel housing. Compare the fuel and drive interfaces with the existing installation.
Buying questions
Does a Cat C15 model name identify its emissions equipment?
No. Cat documents both a lesser-regulated industrial C15 and a Tier 4 Final C15 with different specifications. Use the engine emissions label and arrangement number.
What fuel and drive arrangement does Cat list on the cited C15?
The cited lesser-regulated industrial C15 lists MEUI injection and an SAE No. 1 flywheel housing; verify these on the unit offered.
