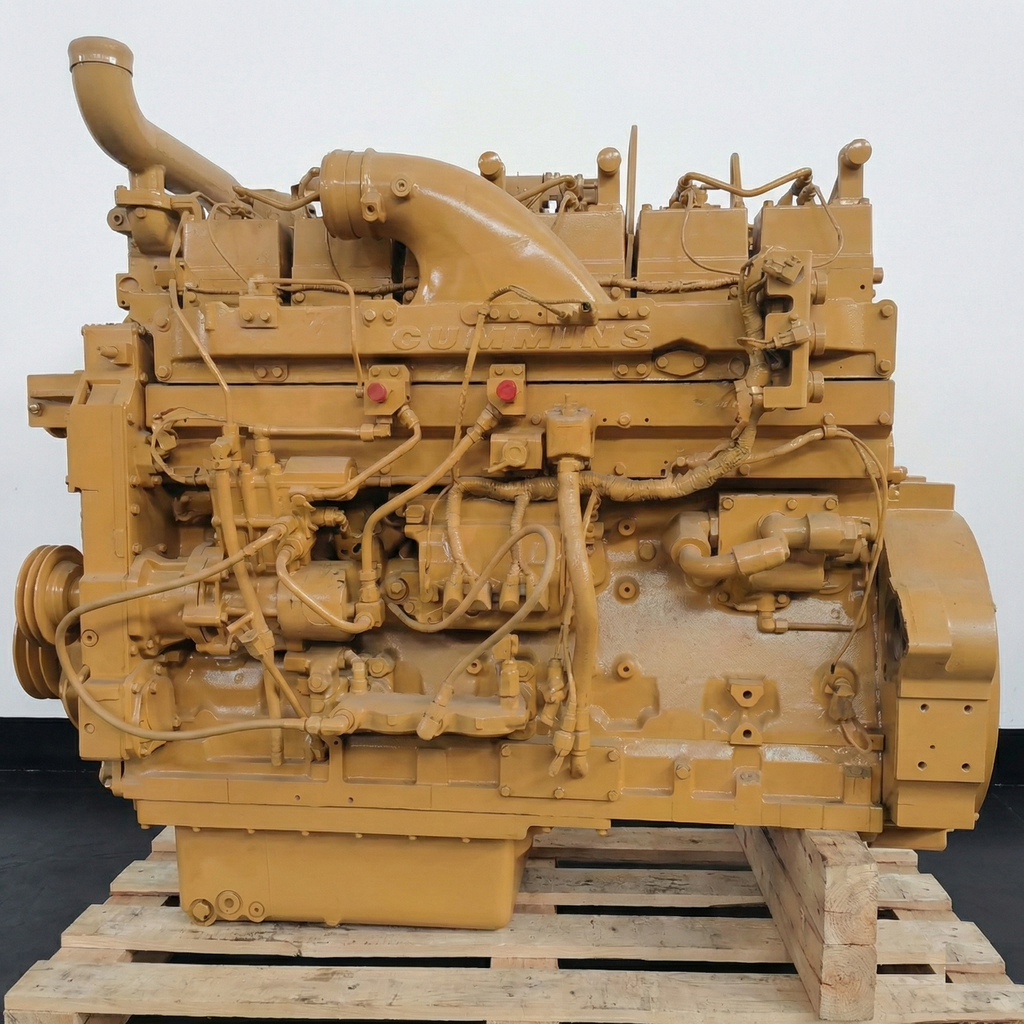

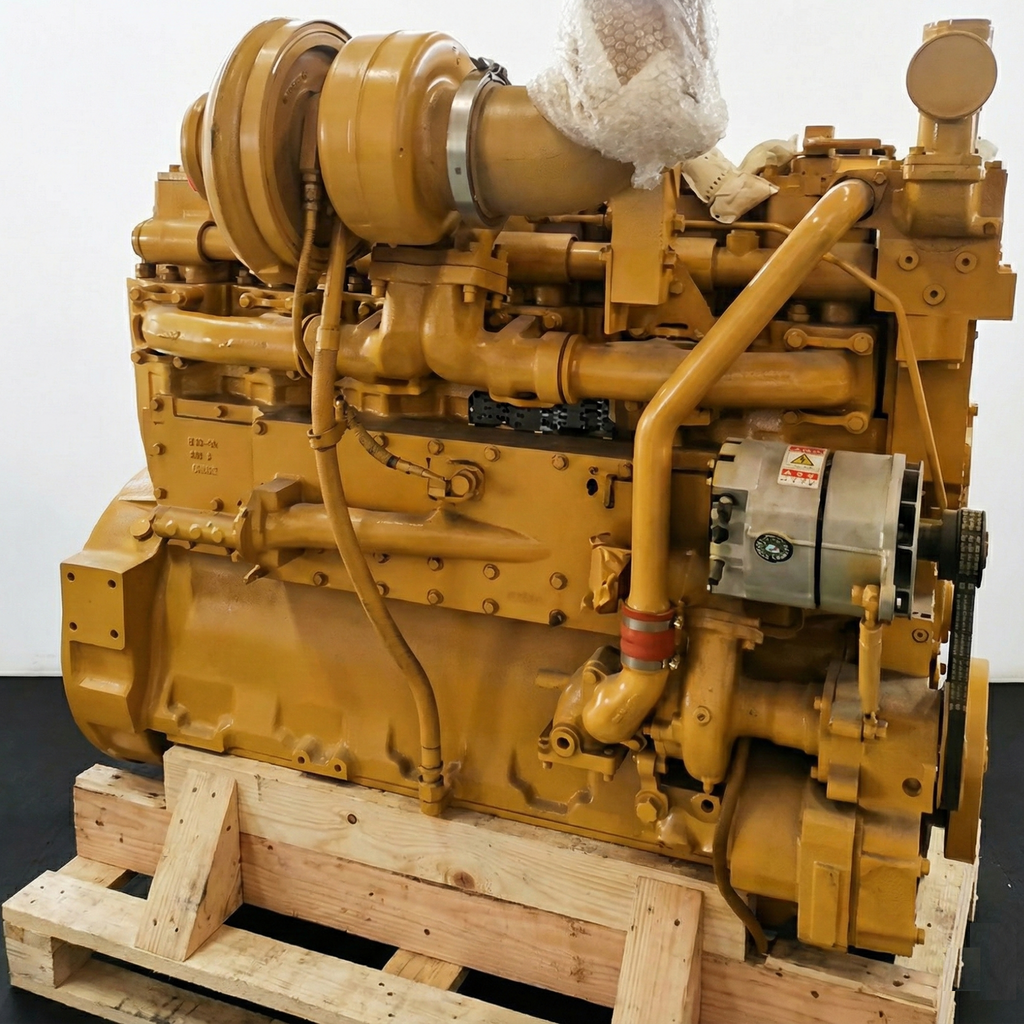

Cummins QSK19 Engine Assembly - Remanufactured
Cummins
Cummins QSK19 Engine Assembly
Remanufactured
- Supplied as
- Diesel Engine Assembly
- Arrangement / engine number
- Confirm against engine plate
- Displacement
- 19 L (1,159 cu in in Cummins mining brochure)
- Engine configuration
- Inline 6-cylinder
Manufacturer reference data; the supplied build must be confirmed.
Manufacturer application references
- Cummins lists QSK19 in its mining-engine range.
- Cummins' mining brochure cites haul trucks, excavators, drills and wheel loaders as QSK19 application types; no particular machine installation is confirmed here.
Confirm the full engine suffix, arrangement and machine serial number for an exact match.
With your order
- 6-month standard brand warranty Included
- Technical review & engine matchingIncluded at no extra cost. We compare the proposed engine with your current assembly using its data plate, arrangement and configuration to confirm the exact match before ordering. Included
- Genuine brand partsReman engines are configured with genuine brand parts, with no aftermarket parts. Included
- Dyno performance test Optional paid
- Complete teardown report On request
- Complete engine testing video On request
- Custom packaging and pallet labeling On request
- Protective coating and paint finish On request
- Custom testing requirements On request
More service options
Pre-dispatch inspection welcomeOptional paid
Radiator, compressor, injector and configuration add-onsBy quote
Any extra cost and preparation time are agreed before proceeding.
Explore engine servicesFreight is charged per engine and shown at checkout.
- No core deposit or return
- International shipping on all engines
Product details
Engine overview
This Cummins QSK19 listing offers a remanufactured engine assembly.
The QSK19 is Cummins' 19 L inline-six diesel platform for heavy off-highway duty. Cummins publishes multiple fuel-system, rating and emissions configurations; the reference values do not identify the configuration of this assembly.
Configuration & included components
- Condition: Remanufactured.
- Assembly scope: Engine assembly.
- Confirm the included components and installation arrangement with NY Engines before ordering.
Warranty & delivery
- 6-month standard brand warranty
- There is no core deposit and no requirement to return your old engine.
- International DDP: Available for all engines, with estimated delivery in 2–3 weeks. Duties, tariffs, import taxes and customs fees are included.
- Freight is charged per engine and shown at checkout.
Technical specifications
The figures below are manufacturer reference data for the versions identified. Final output, dimensions, controls and emissions equipment depend on the engine build and application.
| Specification | Details |
|---|---|
| Engine configuration | Inline 6-cylinder |
| Displacement | 19 L (1,159 cu in in Cummins mining brochure) |
| Bore | 159 mm (6.25 in) |
| Stroke | 159 mm (6.25 in) |
| Aspiration | Turbocharged and charge-air cooled in the cited mining configuration |
| Published mining-family power | 506-800 hp (377-597 kW); supplied rating unconfirmed |
| Published rating speeds | 1,800-2,100 rpm in the cited Cummins rating examples |
| Published peak-torque examples | 1,775-2,350 lb-ft (2,407-3,186 N m) across cited ratings; supplied torque unconfirmed |
| Published fuel-system options | HPI and MCRS; exact supplied option unconfirmed |
| Published emissions variants | Cummins lists EPA Tier II/III versions; certification of this assembly unconfirmed |
Technical details
- Cummins' QSK19 mining reference describes full-authority electronic engine controls.
- The cited mining version uses a two-stage full-flow/bypass oil filtration design.
- Cummins describes precision-honed liners and a ferrous cast ductile-iron piston package for durability.
Applications & fitment
Documented application references
- Cummins lists QSK19 in its mining-engine range.
- Cummins' mining brochure cites haul trucks, excavators, drills and wheel loaders as QSK19 application types; no particular machine installation is confirmed here.
Application examples identify documented uses of the engine family. Confirm fitment against the machine and engine serial numbers before ordering.
Confirm your engine match
- A QSK19 family match is not a plug-and-play fitment. Verify engine serial/CPL, ECM calibration, HPI or MCRS system, emissions configuration, mounts, flywheel and cooling/accessory arrangement against the machine serial.
For fitment checks, availability or a quote, email info@nyengines.com with your engine data-plate photo, machine details and required assembly scope.
Buyer guide
- Cummins lists HPI and Modular Common Rail (MCRS) QSK19 mining configurations. Confirm the original fuel system and electronic-control arrangement before comparing engines.
- The Cummins mining brochure spans multiple QSK19 power ratings and rated speeds. Use engine serial number, CPL and advertised horsepower/rpm to match the intended calibration.
- The cited mining configuration describes a CM850 ECM, Holset turbocharger and two-stage oil filtration. Check which controls and accessories are included with the offered assembly.
Buying questions
Can an HPI QSK19 be replaced with any MCRS QSK19?
Do not assume so. Cummins identifies both fuel-system options. Match fuel hardware, ECM/calibration and machine interfaces using the engine serial and CPL.
Does QSK19 fit every haul truck or excavator using this engine family?
No model-wide fitment is established. Cummins cites haul trucks, excavators, drills and loaders as application types; confirm the exact machine and engine arrangement.
