Isuzu 6SD1XQB Engine Assembly - Remanufactured
Isuzu
Isuzu 6SD1XQB Engine Assembly
Remanufactured
- Supplied as
- Diesel Engine Assembly
- Arrangement / engine number
- Confirm against engine plate
- Reference displacement
- 9.839 L (9,839 cm³)
- Reference cylinder count
- 6
Manufacturer reference data; the supplied build must be confirmed.
Confirm the full engine suffix, arrangement and machine serial number for an exact match.
With your order
- 6-month standard brand warranty Included
- Technical review & engine matchingIncluded at no extra cost. We compare the proposed engine with your current assembly using its data plate, arrangement and configuration to confirm the exact match before ordering. Included
- Genuine brand partsReman engines are configured with genuine brand parts, with no aftermarket parts. Included
- Dyno performance test Optional paid
- Complete teardown report On request
- Complete engine testing video On request
- Custom packaging and pallet labeling On request
- Protective coating and paint finish On request
- Custom testing requirements On request
More service options
Pre-dispatch inspection welcomeOptional paid
Radiator, compressor, injector and configuration add-onsBy quote
Any extra cost and preparation time are agreed before proceeding.
Explore engine servicesFreight is charged per engine and shown at checkout.
- No core deposit or return
- International shipping on all engines
Product details
Engine overview

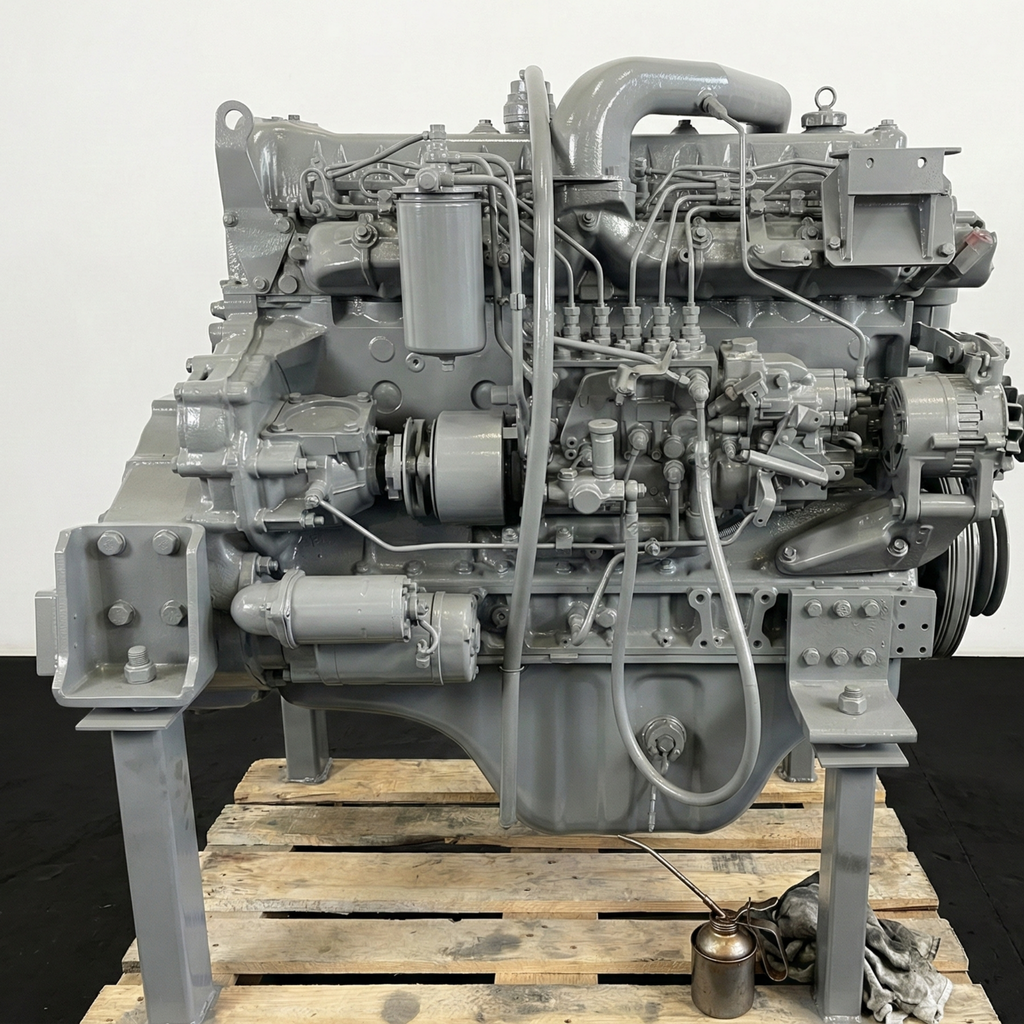

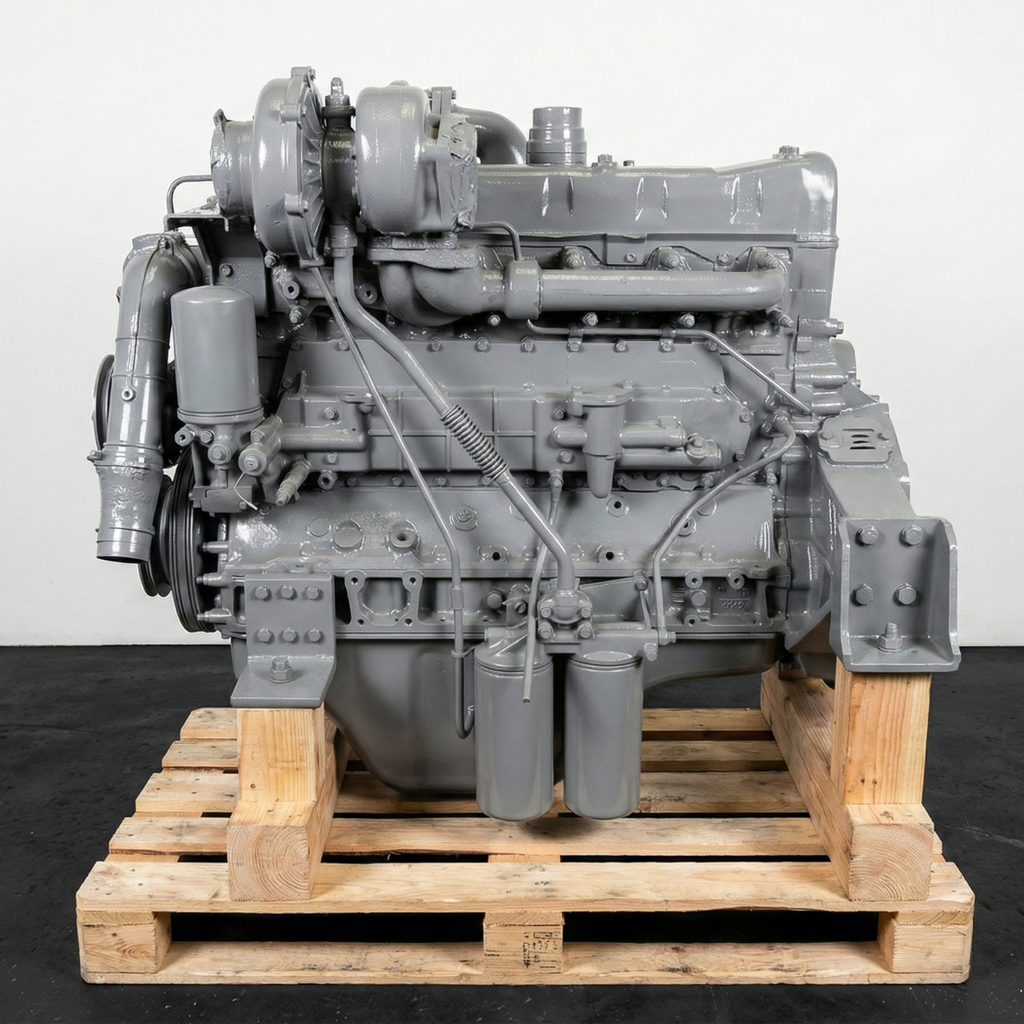

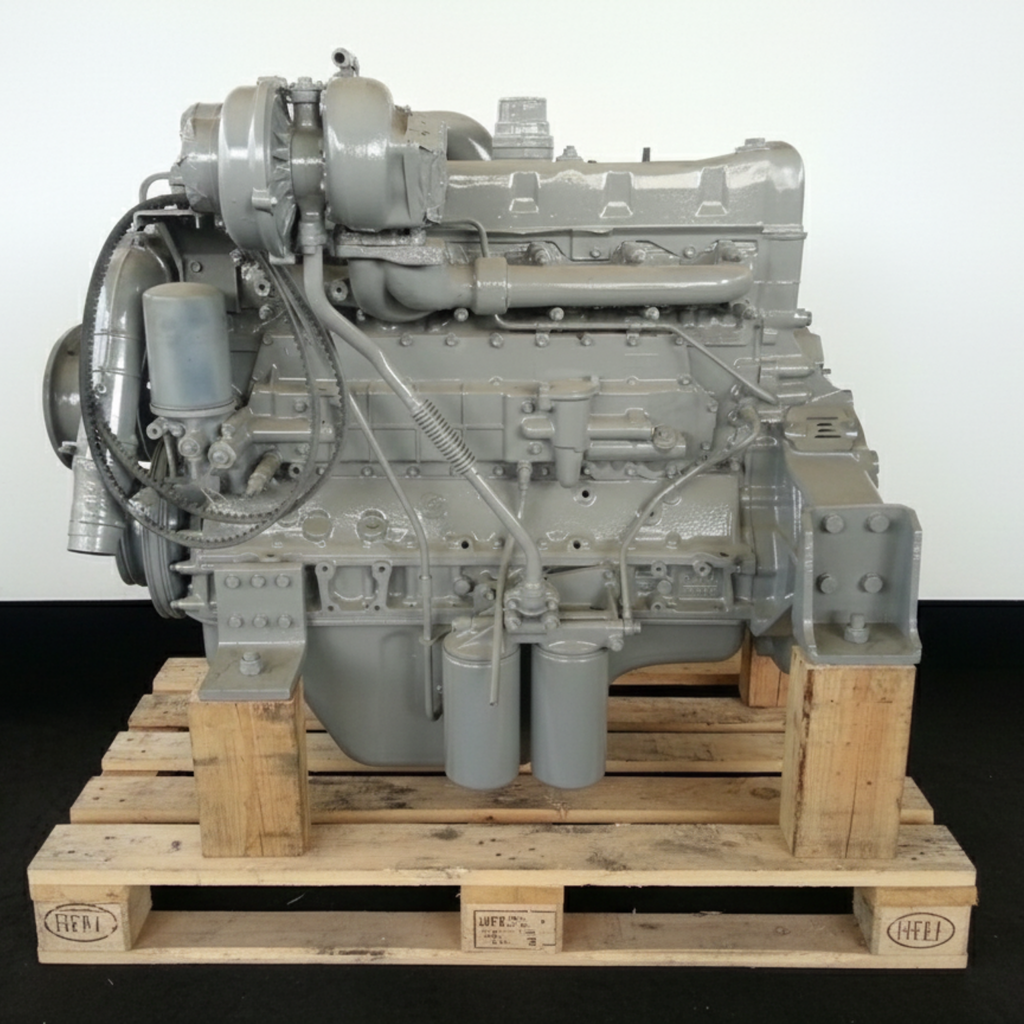

This Isuzu 6SD1XQB listing offers a remanufactured engine assembly.
This assembly is listed as Isuzu 6SD1XQB. Published JCB service data documents the related Isuzu 6SD1TQB-02 as a 9.839-litre, six-cylinder turbocharged engine. The reference data below helps identify the family; confirmation of the exact XQB designation is required for a replacement match.
Configuration & included components
- Condition: Remanufactured.
- Assembly scope: Engine assembly.
- Confirm the included components and installation arrangement with NY Engines before ordering.
Warranty & delivery
- 6-month standard brand warranty
- There is no core deposit and no requirement to return your old engine.
- International DDP: Available for all engines, with estimated delivery in 2–3 weeks. Duties, tariffs, import taxes and customs fees are included.
- Freight is charged per engine and shown at checkout.
Technical specifications
The figures below are manufacturer reference data for the versions identified. Final output, dimensions, controls and emissions equipment depend on the engine build and application.
| Specification | Details |
|---|---|
| Documented reference model | Isuzu 6SD1TQB-02 in JCB service publication 9803/6420; this is not an exact-match source for the listed XQB designation |
| Reference cylinder count | 6 |
| Reference displacement | 9.839 L (9,839 cm³) |
| Reference bore × stroke | 120 × 145 mm |
| Reference aspiration | Turbocharged |
| Reference firing order | 1-5-3-6-2-4 |
Technical details
- The documented 6SD1TQB-02 is a large-displacement six-cylinder turbocharged platform; matching the complete suffix matters when sourcing an assembly.
- Denso also documents common-rail control for certain 6SD1 applications, so fuel-system type cannot be determined safely from the family name alone.
Applications & fitment
Confirm your engine match
- Send a clear engine-plate photo to confirm whether the required model is 6SD1XQB, 6SD1TQB-02 or another 6SD1 variant.
- Identify mechanical-pump or electronic/common-rail configuration and match its controls, injectors and harness.
- Confirm machine serial number, hydraulic-pump coupling, flywheel housing, sump, mounts and turbocharger plumbing.
- Exact power, torque, emissions classification and included accessories must be matched to the confirmed build.
For fitment checks, availability or a quote, email info@nyengines.com with your engine data-plate photo, machine details and required assembly scope.
Buyer guide
- The Denso 6SD1 common-rail reference controls injection quantity, timing and rail pressure electronically. If the original installation uses this system, identify its ECU and sensor connections before choosing an assembly.
- JCB identifies the related 6SD1TQB-02 by a complete model code. Use a photograph of the actual plate to establish whether the listed XQB designation matches the required engine.
Buying questions
Does 6SD1 automatically mean a mechanical injection pump?
No. Denso documents an electronic common-rail 6SD1 system with an ECU, supply pump, rail and injectors. Confirm the fuel system of the specific engine rather than relying on the family name.
Are 6SD1XQB and 6SD1TQB-02 interchangeable?
Interchangeability is not established. The available JCB reference names 6SD1TQB-02; the XQB listing needs plate and installation confirmation before its reference data can be applied.
