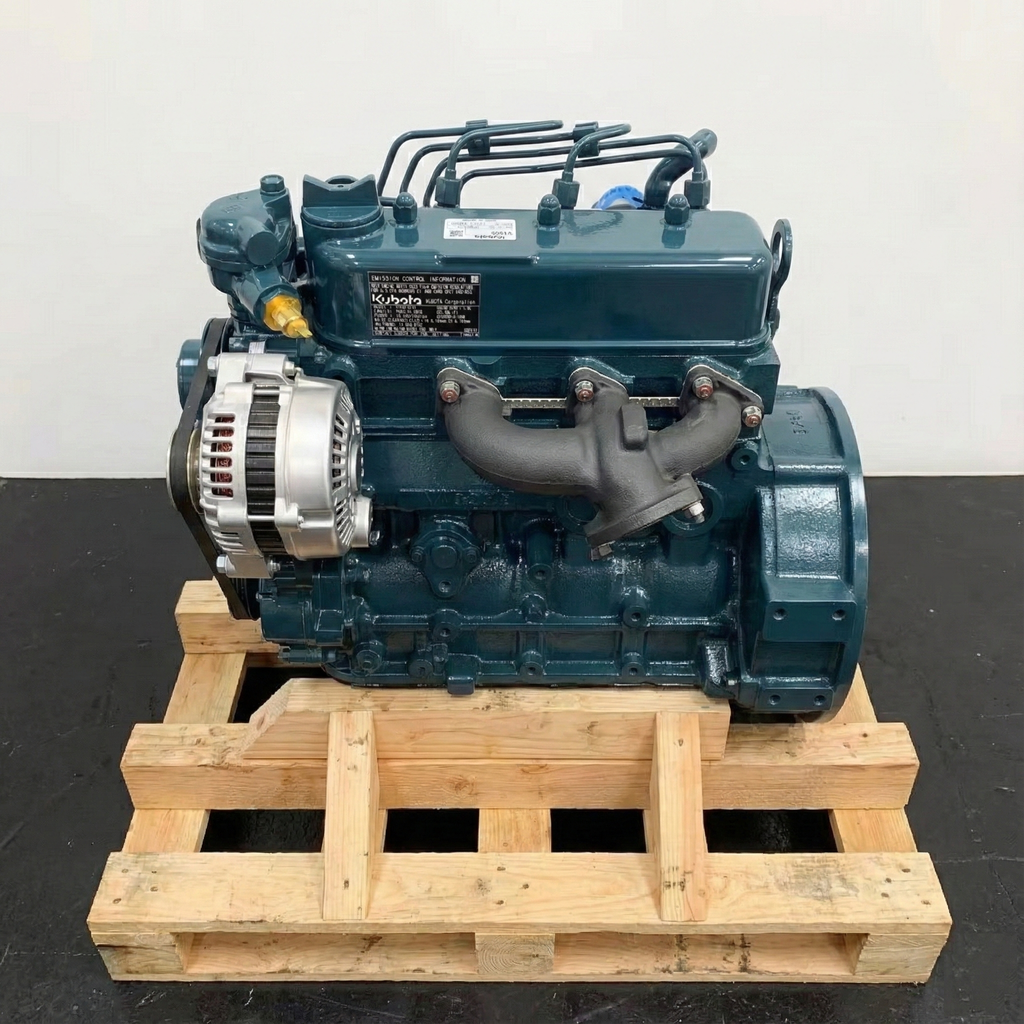

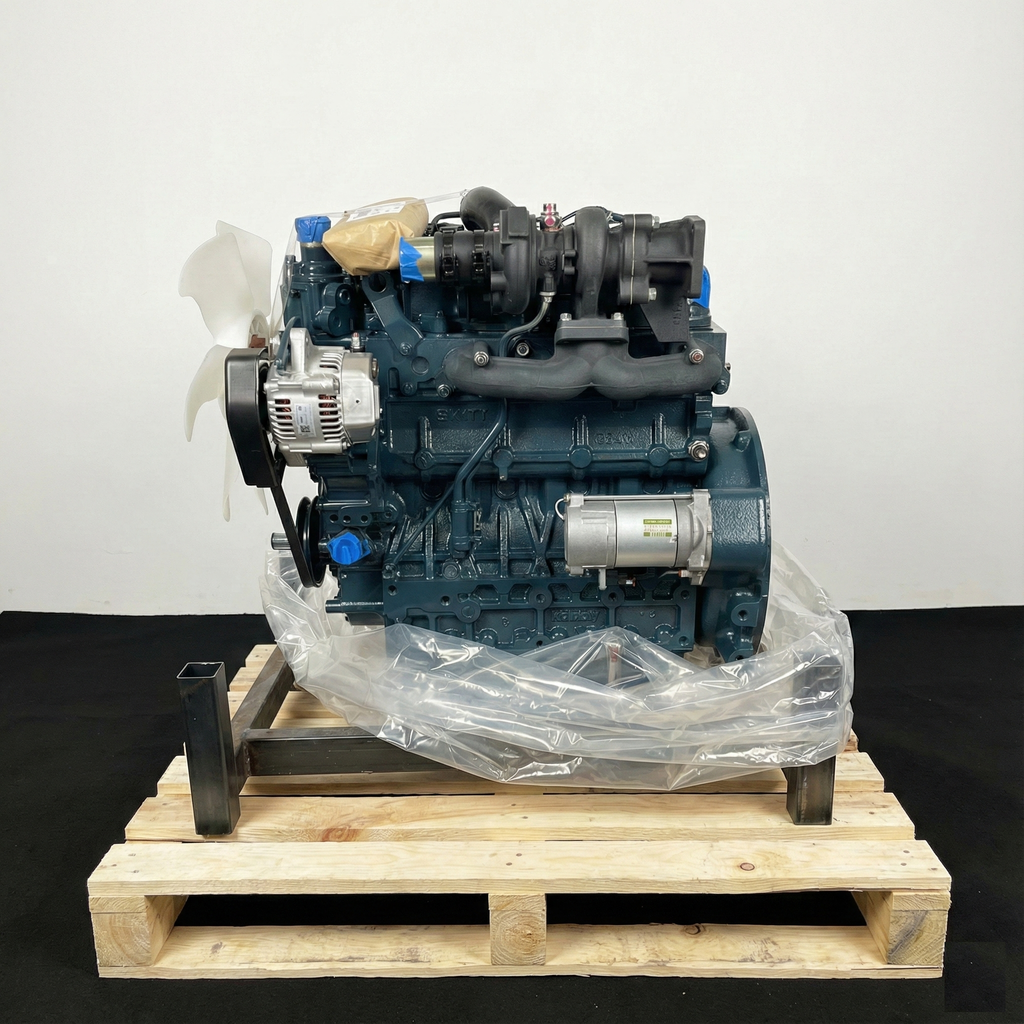

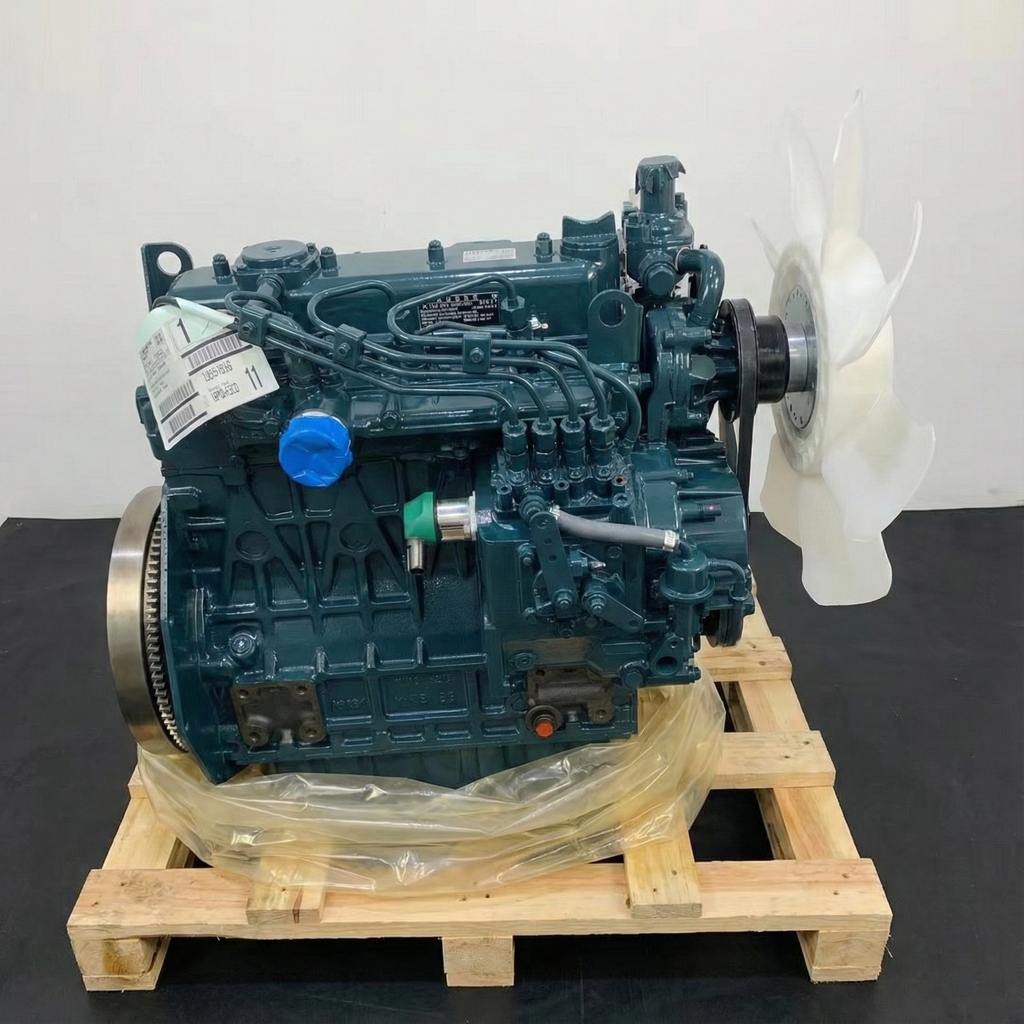

Kubota V1505 Engine Assembly - New Genuine
Kubota
Kubota V1505 Engine Assembly
New Genuine
- Supplied as
- Diesel Engine Assembly
- Arrangement / engine number
- Confirm against engine plate
- Displacement
- 1.498 L
- Cylinder count
- 4
Manufacturer reference data; the supplied build must be confirmed.
Confirm the full engine suffix, arrangement and machine serial number for an exact match.
With your order
- 1-year standard brand warranty Included
- Technical review & engine matchingIncluded at no extra cost. We compare the proposed engine with your current assembly using its data plate, arrangement and configuration to confirm the exact match before ordering. Included
- Complete engine testing video On request
- Custom packaging and pallet labeling On request
- Custom testing requirements On request
More service options
Pre-dispatch inspection welcomeOptional paid
Radiator, compressor, injector and configuration add-onsBy quote
Any extra cost and preparation time are agreed before proceeding.
Explore engine servicesFreight is charged per engine and shown at checkout.
- No core deposit or return
- International shipping on all engines
Product details
Engine overview
This Kubota V1505 listing offers a new engine assembly.
The Kubota V1505 is a 1.498-litre four-cylinder engine in the Super 05 family. The documented naturally aspirated version uses Kubota’s E-TVCS combustion system and radiator cooling. Several rated-speed and emissions versions exist, so match the full engine code when ordering.
Configuration & included components
- Condition: New.
- Assembly scope: Engine assembly.
- Confirm the included components and installation arrangement with NY Engines before ordering.
Warranty & delivery
- 1-year standard brand warranty
- There is no core deposit and no requirement to return your old engine.
- International DDP: Available for all engines, with estimated delivery in 2–3 weeks. Duties, tariffs, import taxes and customs fees are included.
- Freight is charged per engine and shown at checkout.
Technical specifications
The figures below are manufacturer reference data for the versions identified. Final output, dimensions, controls and emissions equipment depend on the engine build and application.
| Specification | Details |
|---|---|
| Engine family | Kubota V1505 / Super 05 |
| Cylinder count | 4 |
| Displacement | 1.498 L |
| Bore × stroke | 78.0 × 78.4 mm |
| Cooling | Water cooled; radiator system |
| Combustion — reference version | E-TVCS indirect injection |
| Aspiration — reference version | Naturally aspirated |
| Reference net intermittent output | 25.0 kW at 3,000 rpm in Kubota Malaysia’s V1505 table; confirm the rating of the supplied build. |
| Reference net continuous output | 21.7 kW at 3,000 rpm in the same V1505 table |
Technical details
- E-TVCS shapes air movement in the combustion chamber to improve fuel-air mixing.
- Kubota lists separate intermittent and continuous outputs; select the rating that matches the equipment duty cycle.
Applications & fitment
Confirm your engine match
- Provide the complete V1505 suffix and engine serial number. V1505, V1505-T and V1505-CR variants are not assumed interchangeable.
- Confirm rated speed, bellhousing/flywheel, hydraulic drive, sump, mount spacing and shutdown-control arrangement.
For fitment checks, availability or a quote, email info@nyengines.com with your engine data-plate photo, machine details and required assembly scope.
Buyer guide
- For the Kubota 05 series, serial markings are shown below the exhaust manifold or on the crankcase at the flywheel side. This helps distinguish serial revisions within the V1505 family.
- The V1505 reference table gives separate continuous and intermittent outputs at several speeds. A machine that operates for sustained periods should be matched using its continuous duty requirement and actual governed speed.
Buying questions
Why do V1505 power figures differ between listings?
Rated speed, duty classification and engine version change the published figure. Kubota separates continuous and intermittent outputs; confirm the original plate and duty before comparing replacements.
What identifies the correct V1505 service version?
The full model suffix and serial number are needed. Kubota uses serial breaks to identify changes and correct parts, so include the stamped number as well as the V1505 family name.
